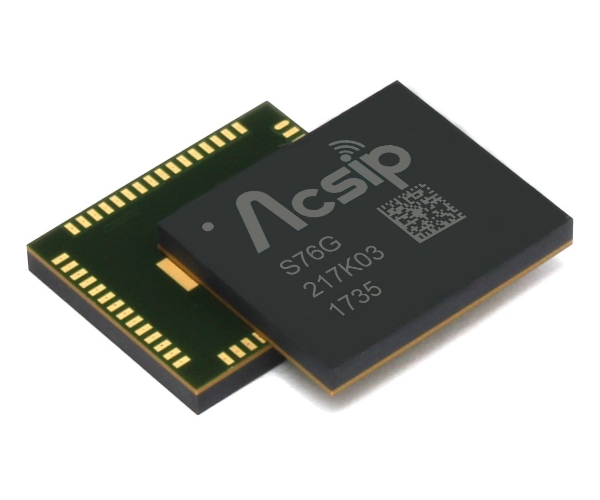

AcSip S76G

AcSip의 STM32L073Z + SX1276 + CXD5603GF SiP. More...

Classes
class	SystemAcSipS76G

Variables
SystemAcSipS76G	System
SerialPort &	Serial
	SerialPort for console. More...
SX1276Chip &	SX1276
	On chip SX1276 radio.
CXD5603GFChip &	gps
	On chip GPS/GLONASS receiver.

Detailed Description

AcSip의 STM32L073Z + SX1276 + CXD5603GF SiP.

Memory-map

Name	Address	Description
Flash	0x08000000 ~ 0x0802FFFF	Program memory
RAM	0x20000000 ~ 0x20004DFF	bss, heap, stack
NOINIT	0x20004E00 ~ 0x20004FFF	noinit\endlink

Pin-map

Pin No.	Pin Name	Pin No.	Pin Name
1	VDD_3V3	32	GND
2	GND	33	NC
3	GND	34	GND
4	MCU_Reset	35	GND
5	GND	36	NC
6	OSC32_IN	37	GND
7	OSC32_OUT	38	NC
8	GND	39	GND
9	PA0	40	NC
10	PA2_TXD_A	41	GND
11	PA3_RXD_A	42	NC
12	GND	43	GND
13	GPS_I2C_SDA	44	GPS_ANT
14	GPS_I2C_SCL	45	PA8_USART1_CK
15	PA4_SPI1_NSS	46	PA9_USART1_TX
16	PA5_SPI1_SCK	47	PA10_USART1_RX
17	PA6_SPI1_MISO	48	PA11_USART1_CTS
18	PA7_SPI1_MOSI	49	PA12_USART1_RTS
19	PC4_ADC1	50	PA13_SWDIO
20	PB0_ADC2	51	PA14_SWCLK
21	PB1_ADC3	52	GPS_TCXO_CLK_IN
22	GPS_TCXO_EN	53	GND
23	GPS_1PPS_OUT	54	VDD_1V8
24	GPS_RST_X	55	NC
25	GPS_UART_TXD	56	PB5
26	GPS_UART_RXD	57	PB6_SCL
27	GND	58	PB7_SDA
28	RXTX_RFMOD	59	BOOT0
29	GND	60	PB8_IO_LED_FCT
30	RF_ANT	61	GND
31	PA1_RF_FEM_CPS	62	GND

Programming Interface

AcSip S76G에 이미지를 다운로드하기 위해서는 ST-Link V2가 필요하며, Windows 환경만 지원합니다. 자세한 설치 방법은 여기를 참고하시기 바랍니다.

Variable Documentation

Serial

SerialPort& Serial

SerialPort for console.

• Tx pin: PA9_USART1_TX
• Rx pin: PA10_USART1_RX
